R46

CAMARO, FIREBIRD
1987-93

7203 --1987-88 Chevrolet Camaro, Iroc-Z, Top. A.S.C.
7204--1988-91 Chevrolet Camaro, Iroc-Z, Top. A.S.C.
7205--1990-92 Chevrolet Camaro, Iroc-Z, Pontiac Firebird Special Edition Top, A.S.C.
7206-- 1990-93 Chevrolet Camaro, Iroc-Z, Pontiac Firebird Special Edition Top, A.S.C.

CG,KV,CH,SS

EV,EC

SF-BLK BCK

SF-TAN
BCK

SG,TW

GR

HOURS
6

7203, 7204, 7205, 7206 Tops made as original with sewn plastic window and Window Piping.
(Piping available in Black, Blue, Brown, Tan and White only; and may
not exactly match color of tops.) Headliner not supplied with 7206.
972L-- 1993 Camaro Headliner. With original style plastic extrusions.

HL VLB, VLC, VLG

Cables 720--Side Cables for 1987-93 Camaro, pair.

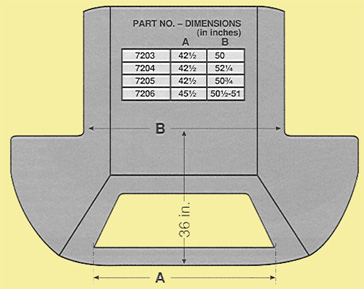

Check Diagram below, and take "A" and "B" Measurements; before ordering or installing
7203, 7204, 7205, 7206 Tops with Plastic Window for 198 Camaro and Firebird.
The "A" and "B" measurements determine which top to order, since A.S.C.
and General Motors made many changes to the top and tl frame, and no records are
available to us to show which top fits which year Camaro or Firebird.
Caution: This system is approximate, and there is no guarantee that taking these measurements
will insure that tops fit correctly. Please carefully I top over the old top BEFORE
installing our top. Tops that do not appear to fit can be exchanged for another Robbins
Camaro top if returned in original be there is no damage to the top or plastic window.

NOTE:
Exercise extreme caution when installing flap at lower rear rail, not to place rail too near
topstitch. All 7203,7204,7205,7206 tops made with Blast straps at rear quarters,
and If old top on the car did not have these elastic straps, simply cut them off
and complete the installation.

DISCLAIMER: A.S.C. and General Motors made many changes to the Camaro convertible top
and top frame. Some tops have elastic straps at the rear qua and others do not. The rear bow
position was changed several times so we cannot guarantee that the rear seam in our top will line
up over the rear bow c Camaro convertibles. No records are available to us as to when
these changes were made. Top frame design problems can cause premature wear, cuts holes
in the rear quarters; and the lower rail can cut the topstitch at rear quarters. Bobbins cannot be
held responsible for damage to our products cap the problems described above.

Original Topping for 7203, 7204, 7205, and 7206: 1987-89 Camaro: Black/Black Pinpoint
Grain Double Texture Vinyl, Black/Black Stayfast Cloth. 1990-93 Camaro: Black/Black Stayfast Cloth.
1991-92 Firebird: Tan/Black Stayfast Cloth. Original Topping for Firebird Special Edition: Tan/Black
Sonnenland German Cloth 972L Headliner: Black Velour Cloth.

RED NUMBERS ARE ROBBINS PART #, BLUE NUMBERS ARE THE YEAR THAT TOP FITS
HOURS LISTED ARE FOR INSTALLATION OF TOP AND WINDOW OR HEADLINER
