R41
MERCURY
CAPRI
6215 --1990-93 Mercury Capri, Ford Capri (Australia) Top.

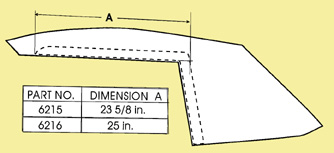

See Diagram below.
Check that "A" Measurement is 23 5/a" before ordering
Top. 6215 fits Capri with
manufacturing dates through June, 1992.
6216-- 1993-94 Mercury Capri, Ford Capri (Australia) Top.
See Diagram below.
Check that "A" Measurement is 25" Before ordering
Top. 6216 fits Capri with
manufacturing dates from July, 1994-On.
6215 and 6216 Tops made as original with NO Binding, embossed
heatsealed quarters,
and embossed heatseal around plastic window. Tops made with black
original style
plastic belt molding reinforcement and weatherseals. 1 Plastic
Window.
PART NO. DIMENSION
CAUTION:
Service Bulletins 91-18-4, 91-12-3, 91-21-1, 91-22-3, 91-24-5
have been issued
by the manufacturer advising of problems with water leaks, and
problems with top frames which can cut or tear tops and the
repair procedures which are required. Robbins cannot be held
responsible for damage to our products which may occur caused
by the
manufacturer's design of tops and top frames, etc.
Original Topping for 6215
and 6216: Initial production began
using Haartz Double Texture Vinyl, Black/Black. Ford of Australia
changed to German Vinyl, first briefly to (VW) Cabrio Grain,
and then to Escort Grain Vinyl; in Black/Black, White/Black and
colors
until production ceased in May 1994.
CORVETTE
1953-75
NOTE: Corvette Tops made
in KV Grain Vinyl will be finished with Original Style Crush Grain
Binding,
and supplied with Crush Grain Wire-On '"**
2050S-- 1953-55 Corvette Top. Made with sewn plastic window.
Cloth tops made with stitched deck
seams and matching cloth binding as original.
Original Topping for 2050S: Tan/Tan Cotton Harmony Cloth.
2051 --1956-58 Corvette Top. Plastic Window Heatsealed
into Tops made in Vinyl.
2051S--1956-58 Corvette Top. Sewn Plastic Window.
2052W** --1959-60 Corvette Top. Original Style Reverse Heatsealed
Window with Dual Groove embossing
around Plastic Window opening, for 2052W made in Vinyl only.
2053W** --1961-62 Corvette Top. Original Style Reverse Heatsealed
Windowm with Dual Groove embossing
around Plastic Window, for 2053W made in Vinyl only.
851--
Original style Top Pads for 2051, 2052W and 2053W Tops, black
or tan.
2054W** --1963-67 Corvette Sting Ray Top. Original Style Reverse
Heatsealed Window with Dual Groove
embossing around Plastic Window opening, for 2054W made in Vinyl
only.
854--
Original style Top Pads for 2054W Top, black or tan.
2055W** --1968-75 Corvette Sting Ray Top. Original Style Reverse
Heatsealed Window with Dual Groove
embossing around Plastic Window opening, for 2055W made in Vinyl
only.
855 --Original style Top Pads for 2055W Top,
black or tan.
Cables 2055-- Original style side cables for 2055W and
2055WT Tops, pair
**
Original Style Warning tag available, for 2052W, 2053W, 2054W
and 2055W tops; Tag sewn into
binding beneath outside lower left-hand corner of Plastic Window.
Add $10.00 to retail price.
Original Topping for 2051,2052W,2053W,2054W,2055W: Black,GM White
(and other discontinued colors),
Double Texture Vinyl.
RED NUMBERS
ARE ROBBINS PART #, BLUE NUMBERS ARE THE YEAR
THAT TOP FITS
HOURS LISTED ARE FOR INSTALLATION OF TOP AND WINDOW OR HEADLINER
